Buying: |

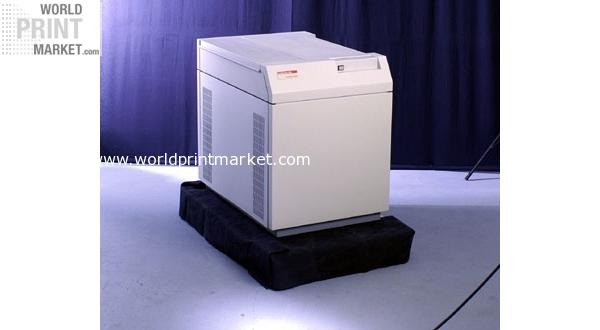

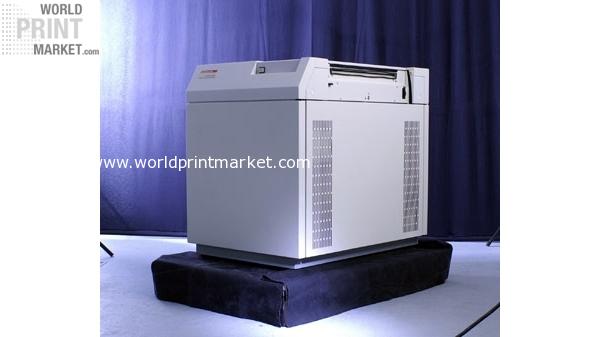

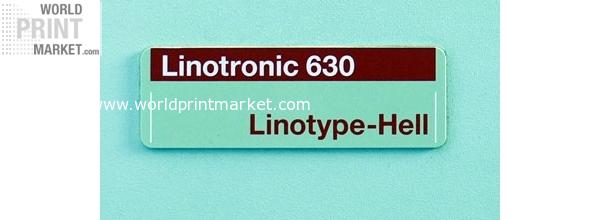

Linotype bright Linotronic 630 |
|||
|
||||
|
||||
ID | 1442 | |||
Categories | CTF-Systems | | |||
|
||||
Short description | Linotype bright Linotronic 630 | |||
Price (in €) | on request | |||
|
||||
Manufacturer | Linotype Hell | |||
Model | --- | |||
Year of manufacture | 2011 | |||
Warranty until | --- | |||
|
||||
Long description | Linotype bright Linotronic 630 01 Construction Nr:04540875 Fabr. No.: 32970291 Non new Exposure principle: Distraction of the beam of light about a rotary, aerial stored prism; inside drum principle source of light: Laser diode with issue 670 680mm Resolutions: 1,219,2,438,3251 dpi Max Rasterfrequenz with film exposure: to 80 lines / cm (200 lpi) Wiederholgenauigkeit approx. 5 µ with full format and four directly successively exposed films Issue variations: positively, negatively, side properly, side wrong, Duplo, Doppel Duplo and Quadro Materials in roles: Film, RC paper and post print foils 0,1 0,18mm strongly Capacity of the givers cassette max. 60 m with 0.10 mm photo material Max Belichtungsformat: 483x450mm (19x17,7inch) without register option 483x428mm (19x16,9inch) with register option Material widths film: 280,310,340,370,400,430,460 mm Min width and length no information Mass (B xH x T) 820 x 890 x 960 mm (32.2 x 35 x 37.8 inch) Weight: approx. 270 kg Interfaces: 2 x LI2, 2 x LI5, X69, TAXI Linotype bright RIP 50 Technical data for Belichter Linotronic 260/330/560/630 Herkules and Herkules M System description: Grid image processor in the Standalone Tower 3.5" floppy disks for the software care Interfaces entrances: RS 232, Centronics, Local talcum Ethernet, SCSI for external Disk Exits: LI2, LI5, SpeedWay Grid technologies Oiginal PostScript Level2 Interpreter of Adobe System control about output manager of the Mac or PC Mass (B x H x T) 36 x 64 x 55 mm Weight approx. 27 kg |
|||
|
||||
Weight | --- | |||
Dimensions (LxWxH) | --- | |||
|
||||
Location | Germany | |||
Region | NRW | |||
|
||||
|
||||
