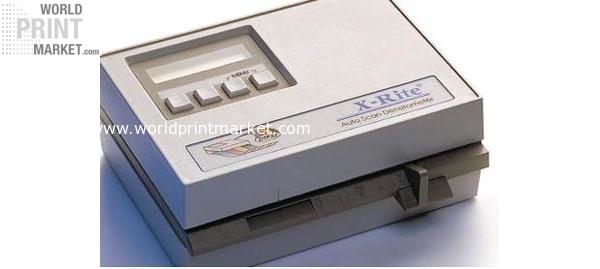

DTP32TR AutoScan Farbdensitometer
Messen Sie Status T, visuelle Dichte nach ISO und den Tonwert auf Filmen, Polyesterplatten und Proofing Materialien.
Kompatibel zu vielen Kalibrierprogrammen von Drittanbietern
Automatic Strip Reading Densitometer for Calibration of Color Output Devices
The DTP32 provides calibration and quality control for PostScript color copiers, color printers, and color proofing systems.
The calibration of any color output device will drift over time, causing fluctuations in color and screen values. Colors may vary due to changes in room temperature, humidity, or changes in paper, toner, or other materials.The DTP32 automatic scanning densitometer ensures consistent, accurate color on every job.
Calibration Software Interface
The DTP32 interfaces directly with most calibration software through a direct cable link to a computer.
Simple, Step By Step Operation
• Output a calibration test print from a color printer or copier.
• Feed it through the DTP32’s auto scanning mechanism.
• The DTP32 sends density readings to the color control software via serial interface.
• Within minutes, the printer is calibrated and ready to deliver accurate, consistent prints.
Features
• Is supported by a majority of 3rd party software, RIP and printer manufacturers. Visit X Rite web site “Color Enabled” for information: www.x rite.com/support/partners.asp
• Status T color response (the industry standard for wideband reflection densitometers).
• Interfaces with IBM compatible Macintosh Sun, and SGI platforms.
• Fast, time saving process – completes calibration in under five minutes.
• Optional DTP32TR offers combination transmission and reflection technology.
• Measures paper and film output.
• Small desktop footprint.
• Accessories included:
calibration reference
operation manual
PC/Macintosh interface cables
power supply
Benefits
• Color consistency throughout a job and over time.
• Sharp, accurate color.
• Predictable, repeatable results.
• Quality control of on demand color including proofing, large format and color prints.
• Fast, easy to use system.
• No trial and error.
• Fewer service calls, lower overall costs.
Specification
Measuring Geometry
Reflection: per ANSI PH2.17/ISO 5/4
multi sensor array
Optional Transmission: per ANSI PH 2.
19/ISO 5/2
Light Source
Gas pressure filament lamp with
approx. 2850°K color temp
Lamp life, approx. 1,000,000 scans @ 11"
Receiver
Blue enhanced silicon photodiodes
System Response
ANSI/ISO Status T
Measurement Range
Reflection: 0.00D to 2.50D absolute
Transmission: 0.00 to 4.00D absolute
Repeatability
±0.01D, 0 to 3.0D
±1%, 3.0 to 4.0D
Linearity
±0.01D or ±1%, 0 to 3.5D
±3%, 3.5 to 4.0D
Zero Stability
±0.01D max
Calibration
Automatic w/QuickCal™
Measuring Area
2mm x 4mm, 2mm in the
direction of travel
Measuring Location
3.0" from right most stop
Adjustable stops in .5" increments
from .5 to 3.0"
Fixed slot for up to 38mm film
Sample Characteristics
Thickness: 0.003 to .015"
Size: Unit is open at one end and
can accept any size sheet so
long as it can be pulled evenly
through the unit.
Patch size: .400" (10.16mm) min. in
direction of travel by .350" min. wide
1mm wide 1.0D contrast space
between patches or .5D min
difference between patches
Transport Speed
~1.2"/sec.
Measurement Rate
Adequate to measure patches .
4" minimum in direction of travel
Communication Interface/Protocol
(as described in X Rite DTP
RCI manual)
I/O port: (10 circuit modular jack)
Patented bidirectional RS 232 at
<_ 19.2k baud
Remote control:Via standard X Rite
DTP series RCI commands
This RCI protocol allows for
downloading of custom measurement
strips and display data, remote
calibration, and remote parameter
configuration.
Data format:Transmitted in Density,
+Dot, Dot, or Reflectance. Output
has x10 capability.
Power Requirements
& Connection
+12v @ 700ma
2 circuit 3.5 jack with plus @ tip using
either SE30 61 (115VAC) or SE30 62
(230VAC) adapter
Physical
Dimensions
2.75" H
7.2" W
6.0" D
Weight
gross 5.0 lbs.
net 2.5 lbs.
Environmental
Operating temp. range +10° to +35° C;
30% to 60% RH.
Storage temp. range
40° to +60° C; 5% to 95% RH.
Accessories Provided
Calibration Reference
Operation Manual
PC & Mac Interface cables
AC Adapters
Either 115VAC (P/N SE30 61) or
230VAC (P/N SE30 62)
Optional Accessories
RCI Interface Manual
(P/N DTP32 506)
Models
DTP32R
Reflection only 115VAC
DTP32TR
Reflection/transmission 115VAC
DTP32RX
Reflection only 230VAC
DTP32TRX
Reflection/transmission 230VAC |
