X Rite 408 Color Reflection Densitometer

2832

Categories

Measuring Devices |

Short description

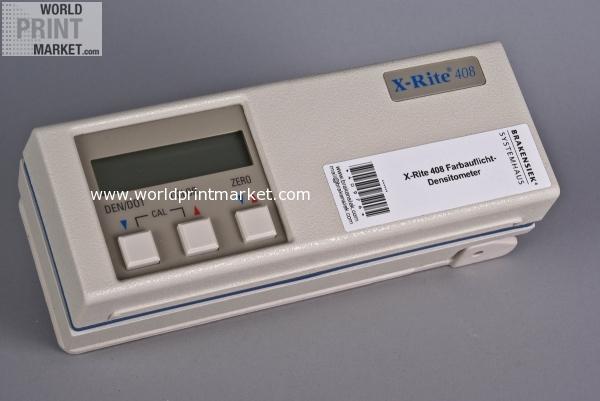

X Rite 408 Color Reflection Densitometer

Price (in €)

on request

Manufacturer

X Rite+GretagMacbeth

Model

---

Year of manufacture

0000

Warranty until

---

Long description

X Rite 408 Colour incident light densitometer

Not New

Technical data:

* Announcement: Point matrix LCD display

* Measuring geometry: ANSI PH 2.17 / DIN 16536 Multiple sensors layout

* Source of light: Luminous thread lamp 3000K DIN, approx. 2856K ANSI

* Receiver: Silicon photo diode

* Colour terms:
G optics for the graphic industry with ANSI status T Computerized
Color responses áµ€á´¹
E optics with a 47B filter according to. DIN 16536 and Computerized
Color responses áµ€á´¹ narrow tape optics.

* Measuring area
From 0 to 2.5D with G and E
From 0 to 2.2D with GS, IT, G / LP and E/LP
From 0 to 100% of half tone dot

* Repeatability
+/ 0,01D
+/ 1 % with half tone dots size (10 100%)

* Linearity: +/ 0,02D or +/ 1 %

* inter device set up: +/ 0,02D or +/ 2 %

* Diaphragm aperture
408 g, E 3.4 mm
408GS, IT 1.7 mm

* Calibration
Automatically with Quick cal áµ€á´¹
Setting of zero and Slope for density
Computerized Color responses áµ€á´¹

* Polarisation filter: 2x linearly / LP option

* Hot air time: none

* Zero value stability: max. +/ 0,01D in 8 hours

* Slope stability: max. +/ 1 % per year

* Electricity supply: 6 chargeable FO NiCd batteries whole nominal tension 7.2 V with 600mAh (included in delivery)

* Loading time: approx. 14 hours

* Necessary WS adaptor
408: 90 130VAC, 50 60Hz, 18 W max.
408 X: 180 260VAC, 50 60Hz, 20 W max. 12VDC with 700ma: positive point

* Operating temperature: 10 Â° 40Â°C

* Measurements per load: approx. in 4500 (according to application kind)

* Measuring time: approx., 0.6 seconds

* Weight: 800 g

* Dimensions: 74x80x196 mm (height x width x length)

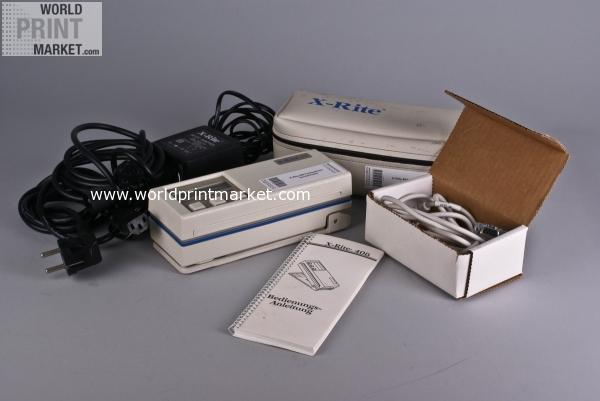

Accessories (included in delivery):

* Power Supply

* Operating instructions

*Data Cable

* Transport pocket

Weight

---

Dimensions (LxWxH)

---

Location

Germany

Region

NRW
