Laboratory tool for investigating:
the drying tendencies of Papers
subjected to thermal stress
formaldehyde release during thermal
transfer printing (textile industry)
the amount of residual toluene in
gravure printed products (with additional
detector).
Device description

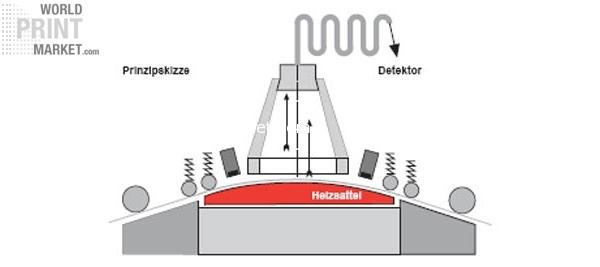

The key element in the device is a heated plate. A sample of the material is moved over this plate and is in direct contact with it. The volatile substances given off by the material pass upwards and are condensed
by a cooler. The collected condensate can then be chemically analysed as required.
Technical Specifications
Device dimensions: 420 mm X 165 mm 600 mm
Processing speed for material samples: 0 to 99 mmls
SurFace temperature of the heating plate: Max 299 "C
Width of sample: 46 mm
Thickness of sample: 0.5 mm
Power supply: 220 V150 Hz, 5Al1.1 kW
