Buying: |
Loglux i5 FW |
|||
|
|
||||
|
|
||||
| ID | 1762 | |||
| Categories | Measuring Devices | | |||
|
|
||||
| Short description | Loglux i5 FW | |||
| Price (in €) | on request | |||
|
|
||||
| Manufacturer | ||||
| Model | --- | |||
| Year of manufacture | 0000 | |||
| Warranty until | --- | |||
|
|
||||

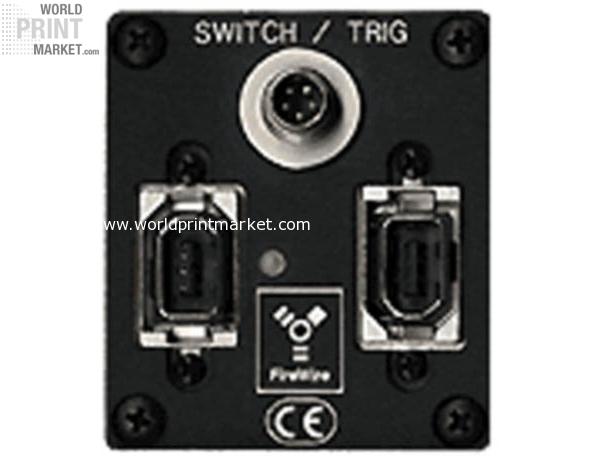

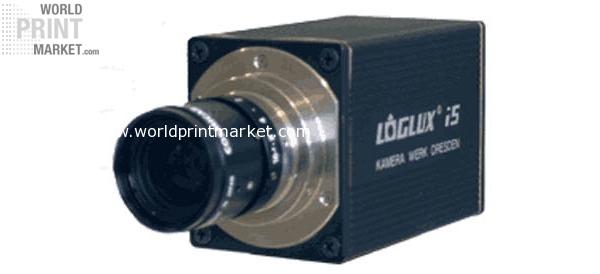

| Long description | Log lux ® i5 FW The compact high resolution CMOS camera with FireWire connection for the application in the industrial picture processing. The camera log lux ® i5 FW bases pixel of sensor CMOS on 1.3 Mega and distinguishes itself by a high dynamism. Together with the robust case this camera is suitable very well for duties in the industrial picture processing. The log luxes ® i5 qualities FW from the first sight: Progressive Scan CMOS sensor with 1.3 Megapixel up to 60 Frames / second with VGA resolution real 10 bit grey value data Dynamism area more than 100 dB FireWire ™ (IEEE1394a), IIDC 1.30 (DCAM) compatibly optically isolated Trigger entrances and exits plug connectors suited for industry two FireWire ™ ports to the concatenation of several cameras robust case (HxBxT: 54x46x82 mm) with C Mount objective connection comfortable introduction software for Windows any screen window (ROI) presentably fashion DCAM 7 Objectives can be mounted exactly by the baking Focus correction in the C Mount connection by which an optimum picture sharpness is reached. For the picture preprocessing look Up tables (LUT) are available. Beside already available functions can be loaded up to three freely determinable tables. By in system Programmierbarkeit (ISP) the camera with a customised proficient product can be adapted to special uses. To the memory of configurations the camera offers four different configuration profiles. With the help of the introduction software Lux product the camera can be adapted fast to the respective job. About an integrated viewer a camera live picture which can be stored as a sequence or as a frame is available immediately. Technical data Picture sensor Resolution In 1280 x 1024 pixels (2/3" sensor diagonals) Pixel size 6.7 x 6.7 µ m ² Grey value depth real 10 bit Camera Dimension of picture area In 1280 x 1024 pixels Framerate 100 fps with VGA Fastener Rolling Shutter Worldwide Shutter 5 µ see 4 see Dynamism area 64 dB (linearly) > 100 dB (multiple slope) FPN <0.2% RMS Delicacy 8.46 V / (lx * s) VIS and NIR (70 lx = 1 W/m ²) SNR 1600:1 (Worldwide and Rolling Shutter) Spectral range 400 in 1000 nm Objective connection C Mount with baking focus correction Picture preprocessing Test picture, three freely determinable look Up tables Interface Interfaces 2 FireWire ™ ports (IEEE1394a) 100/200/400 MBit / p. 1 Triggereingang 24 V DC, galvanically separate 2 switch exits 24 V DC, max. 500 mA Configuration DCAM 1.3, settings constantly in the camera Protocol DCAM V1.30 DCAM modes Format 0 1 1 2 Fashion 5/6 2/6 5/7 2/7 Size VGA SVGA XGA QVGA Electricity supply 8 – 33 V DC, <3 W Temperature area 0 60 °C Mechanical data Mass of (HxBxT) 54 x 46 x 82 mm (without objective) Weight 250 g |
|||
|
|
||||
| Weight | --- | |||
| Dimensions (LxWxH) | --- | |||
|
|
||||
| Location | Germany | |||
| Region | NRW | |||
|
|
||||
|
|
||||
|
|
||||
