Buying: |

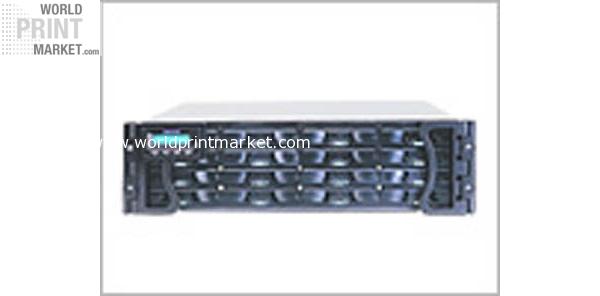

EonStor A16F G2422 |
|||
|
|
||||
|
|
||||
| ID | 1901 | |||
| Categories | Data Storage | | |||
|
|
||||
| Short description | EonStor A16F G2422 | |||
| Price (in €) | on request | |||
|
|
||||
| Manufacturer | Infortrend | |||
| Model | --- | |||
| Year of manufacture | 0000 | |||
| Warranty until | --- | |||
|
|
||||
| Long description | EonStor A16F G2422 * Two (2) FC 4G host channels; transfer rate up to 400MBps per channel * Accommodates sixteen the latest 3Gbps, SATA II disk drives; backward compatible with SATA I drives * ASIC 266 architecture capable of unprecedented read/write performance:510/350 (MB/sec) * Highest fault tolerance with RAID6 configuration * Support up to 2GB DDR RAM DIMM module * Hot swappable battery backup unit (BBU) available * SAN ready subsystem in an enhanced modular enclosure Host to Drive Interface Configuration Model Form Factor FC 4G to SATA II Single A16F G2422 3U Rackmount Specifications RAID * Multiple arrays configurable with dedicated or global hot spares * RAID levels supported: RAID 0, 1 (0+1), 3, 5, 6, 10, 30, 50, 60, NRAID and JBOD * Online expansion by: o Adding new drives o Copying and replacing drives with drives of larger capacity * Automatic background rebuilds * Configurable stripe size and write policy per array * Intelligent drive handling: o In degraded mode: skips irreparable blocks to continue rebuild o In normal operation: data block verification and repair Subsystem Components * Redundant controller configuration provides full RAID functionalities o One (1) EonStor enhanced 3U enclosure o One (1) RAID controller module o One (1) 256MB DDR RAM DIMM module (pre installed on the controller modules) o Two (2) hot swappable, redundant, 460W power supply units (PSUs) o Two (2) hot swappable, redundant, dual fan cooling modules running in high/low speeds o One (1) optional BBU o Sixteen (16) hot swappable drive trays o Two (2) front handles Host Interface * Two (2) FC 4G host channels; backward compatible with 1 or 2G FC * Auto negotiate FC AL, point to point, or switched fabric * Concurrent I/O commands * Tagged command queuing up to 256 * Variable stripe size per logical drive * Optimization setting for random or sequential I/Os Drive Interface * Sixteen (16) hot swappable 3Gbps SATA II drive trays that accommodate 1 inch pitch, 3.5 inch SATA II or SATA I disk drives * Automatic bad sector reassignment * Dedicated bandwidth to each connected drive Management * Firmware embedded utility via LCD keypad or RS 232C port * Host side SES emulation with pass through to back end SES emulation * VT 100 terminal emulation via RS 232C * Telnet access via onboard Ethernet port * 10/100 BaseT Ethernet for out of band management * Two (2) COM ports for local access to firmware embedded utility and UPS connectivity * Firmware embedded Java based RAIDWatch® manager: o Graphical user interface o Local/remote management; in band or out of band via TCP/IP o Centralized management to monitor and administer multiple RAID units on one screen o Secure link over SSL * Configuration Client for easy access to the configuration utility screen * SNMP 2.0 MIBs with get and set commands SAN Management * Up to 1024 LUNs (if sufficiently large memory is used with the proper settings) Indicators * Onboard alarm is triggered when one of the following fails: o RAID controller module o Cooling module o Power supply unit o Hard drive o BBU module * Module status LED indicators: o Two (2) per drive tray o Three (3) per LCD panel o Six (6) per RAID controller module o One (1) per Fibre port o Two (2) per Ethernet port o Two (2) per cooling module o One (1) per power supply unit o One (1) per BBU module * Module failure alert through I2C bus * Event notifications sent over email, fax, LAN broadcast, SNMP traps, MSN messenger, ICQ, SMS short messages * System alerts through Java based RAIDWatch manager Infortrend Smart Technologies Derived from more than ten years experience in RAID storage design, Infortrends innovative firmware delivers Smart technologies that provide enhanced storage solutions for every customer environment, from small organizations to large enterprises. These technologies enhance I/O processing, drive handling, and system management. IOSmart IOSmart allows for the flexible configuration of logical drives, logical volumes and logical partitions and ensures instant RAID availability via background logical drive initialization. Fibre loops load balancing is provided within the subsystem. The firmwares embedded intelligent algorithms, such as Adaptive Write Policy and Guaranteed Latency I/O, improve sequential write performance and ensure the fast and continuous flow of data. DrvSmart The DrvSmart utility provides an easy way to store data while keeping it safe. One of the main DrvSmart functions, Media Scan, retrieves data from degraded or damaged hard drives and handles low quality drives in both the degraded mode and during the rebuild process. Other DrvSmart features include disk cloning, drive roaming, SMART, transparent resetting of non responsive hard drives, and RAID parity update tracking and recovery. SysSmart SysSmart combines enclosure monitoring and firmware management capabilities in order to minimize the chance of down time caused by hardware failures. The Auto data protection mechanisms are developed to ensure data safety. Other SysSmart functions include the event triggered and the various monitoring utilities and monitoring approaches combined with the powerful RAIDWatch manager. Component status, voltage and temperature readings, and system events are instantly revealed through the managers graphical interface. Physical/Electrical Interfaces * Two (2) FC ports, each using a short wavelength adapter * Two (2) COM ports on the controller module for RS 232C serial port (38400, n, 8, 1) and UPS support * One (1) 10/100BaseT Ethernet port on the controller module |
|||
|
|
||||
| Weight | --- | |||
| Dimensions (LxWxH) | --- | |||
|
|
||||
| Location | Germany | |||
| Region | NRW | |||
|
|
||||
|
|
||||
|
|
||||
