Buying: |

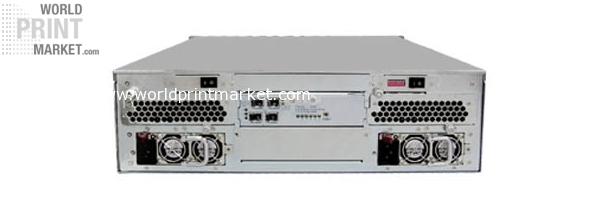

EonStor A16F J1210 JBOD |
|||
|
|
||||
|
|
||||
| ID | 1905 | |||
| Categories | Data Storage | | |||
|
|
||||
| Short description | EonStor A16F J1210 JBOD | |||
| Price (in €) | on request | |||
|
|
||||
| Manufacturer | Infortrend | |||
| Model | --- | |||
| Year of manufacture | 0000 | |||
| Warranty until | --- | |||
|
|
||||
| Long description | EonStor A16F J1210 (JBOD) * FC to SATA JBOD * Highest density, 16 drives in 3U rack space * Redundant data paths for dual ported connection to RAID controllers or servers * Can be connected to EonStor RAID subsystems or EonRAID 2510FS controller heads * Expansion ports for redundant connectivity to external JBODs * A total of seven (7) JBODs can be cascaded and connected to a RAID subsystem Configuration Model Form Factor JBOD A16F J1210 (JBOD) 3U Rackmount Specifications JBOD Components One (1) EonStor 3U JBOD enclosure One (1) JBOD controller module One (1) 128MB SDRAM DIMM module (pre installed on the controller module) Two (2), hot swappable, redundant, 460W power supply units Two (2), hot swappable, redundant, dual fan, cooling modules Sixteen (16), hot swappable, drive trays Two (2) front handles Management Module status LED indicators * Two (2) per drive tray * Two (2) per cooling module * One (1) per power supply unit * Nine (9) per JBOD controller module Onboard alarm is triggered when one of the following modules fails: * JBOD controller module * Cooling modules * Power supply unit * Hard drive * Serial port communication with PC hyper terminal Host/Drive Interface Supports 3.5", 1" high hard disk drives Sixteen (16) hot swappable drive trays Single dual loop across 16 drives within enclosure Auto negotiate and full duplex 2Gb FC AL Physical/Electrical Interfaces: * Four (4) SFP sockets that use short wavelength adapters * One (1) RS 232C (Audio Jack) serial port (38400, n, 8, 1) for diagnosis only Power Supply Unit (PSU) modules Two (2) redundant, hot swappable, 460W, PSU modules with PFC. INPUT: 90 ~ 260VAC 47 ~ 63MHz OUTPUT: (Maximum output: 460 Watts) +12.0V 32A max. +5.0V 25A max. + 3.3V 20A max. Cooling fan Two (2), redundant, hot swappable, dual fan, cooling modules. Fan speed: 3600rpm Fan size: 9.7cm Airflow per cooling module: 61 CFM 460 Watts) Environmental Specifications Operating temperature: 5 to 40°C Non operating temperature: 40º to 60ºC Relative humidity: 10~95%, non condensing Operating altitude: Sea level to 10,000ft Dimensions: Without protrusions: 131H x 446.2W x 500D mm With protrusions: 131H x 485W x 532D mm Package dimensions: 476H x 592W x 695D mm System weight (w/o drives): Net weight: 20kg Gross weight: 32kg |
|||
|
|
||||
| Weight | --- | |||
| Dimensions (LxWxH) | --- | |||
|
|
||||
| Location | Germany | |||
| Region | NRW | |||
|
|
||||
|
|
||||
|
|
||||
