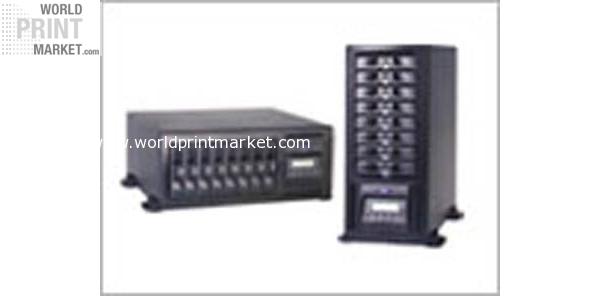

EonStor A08U C2412 MassCube II |
|||
|
|
||||
|
|
||||
| ID | 1911 | |||
| Categories | Data Storage | | |||
|
|
||||
| Short description | EonStor A08U C2412 MassCube II | |||
| Price (in €) | on request | |||
|
|
||||
| Manufacturer | Infortrend | |||
| Model | --- | |||
| Year of manufacture | 0000 | |||
| Warranty until | --- | |||
|
|
||||
| Long description | EonStor A08U C2412 (MassCube II) * SCSI 320 to SATA II single controller RAID subsystem * Hardware XOR engine by dedicated ASIC chipsets * Tower or desktop stackable enclosures * Dual speed fans to reduce noise * Enhanced modular enclosure design Configuration Model Form Factor Single A08U C2412 Cube tower or desktop convertible Specifications RAID Multiple arrays configurable with dedicated or global hot spares RAID levels supported: RAID 0, 1 (0+1), 3, 5, 10, 30, 50, NRAID and JBOD Online expansion by: * Adding new drives * Copying and replacing drives with drives of larger capacity Automatic background rebuilds Configurable stripe size and write policy per array Intelligent drive handling: * In degraded mode: skips irreparable blocks to continue rebuild * In normal operation: data block verification and repair Host Interface * Two (2) SCSI 320 channels through four (4) VHDCI 68 pin SCSI ports; SCSI 160 backward compatible * Concurrent I/O commands * Tagged command queuing up to 256 * Variable stripe sizes per logical drive * Optimization setting for random or sequential I/Os Drive Interface * Eight (8) 3Gbps SATA II, hot swappable drive trays that accommodate 1 inch pitch, 3.5 inch SATA I or SATA II disk drives * Automatic bad sector reassignment * Dedicated bandwidth to each connected drive System Components Single controller configuration provides full RAID functionalities * One (1) tower/desktop convertible enclosure * One (1) RAID controller module * One (1) 128MB SDRAM DIMM module (pre installed module) * Two (2) 250W power supply units * Two (2), hot swappable, redundant, single fan cooling modules running in high/low speeds * Eight (8) hot swappable drive trays * Optional battery backup unit (BBU) Management Front LCD control panel for setup and configuration 10/100 BaseT Ethernet for out of band management One (1) RS 232C serial port for local access to firmware embedded utility VT 100 terminal emulation via RS 232C Telnet access via onboard Ethernet port Java based RAIDWatch® GUI manager: * Cross platform, remote administration with SSL * Out of band access via Ethernet * Centralized management to monitor and administer multiple RAID units on one screen Configuration Client for real time event notification over Email, Fax, LAN broadcast, SNMP Traps, MSN messenger, ICQ, SMS short messages, and the configuration utility screen SNMP agent support: * SNMP trap event notification with plain text event message (no MIB file required) * SNMP V2.0 MIB file support with get and set commands Indicators Onboard alarm is triggered when one of the following modules fails: * Cooling module * Power supply unit * Hard drive * Violated temperature thresholds Module status LED indicators: * Two (2) per drive tray * One (1) per cooling module * One (1) per power supply unit * One (1) per BBU module * Three (3) per LCD panel * Four (4) per RAID controller module * Two (2) per Ethernet port Module failure alert through I2C bus Intelligent Drive Handling If two bad blocks occur on two member drives of an array, the integrity of the stored data is endangered. Media Scan, Infortrends innovative intelligent drive handling function, retrieves data from the damaged sectors. Media Scan handles low quality drives in both the degraded mode and during the rebuild process. For additional data security, other intelligent drive management features include the transparent resetting of hung hard drives, power failure management, and bad drive handling during LD expansion. Task Scheduler The Task Scheduler is combined with Media Scan so that the scanning operation can be scheduled beginning at a specified start time and repeating at the configurable intervals. The operation is thus hands free. Each such schedule can be defined to operate on individual hard drives, all drives of a certain class, all member drives of a specified logical drive, or all member drives of all logical drives. Interfaces * Four VHDCI (4) ports in two (2) dual stacked VHDCI SCSI connectors * One (1) COM port (38400, n, 8, 1) * One (1) 10/100BaseT Ethernet port Power Supply Module Two (2) power supplies with PFC Input: 90VAC at 8A, 260VAC at 4A with PFC (auto switching) 47 ~ 63Hz Output: ( Maximum output: 250 Watts) +12.0V 16A max. + 5.0V 20A max. + 3.3V 20A max. Cooling Module Two (2) redundant single fan cooling modules Maximum air flow (each module): High speed: 53 CFM Low speed: 23 CFM Environmental Specifications Operating temperature: 0 to 40°C Non operating temperature: 40º to 60ºC Relative humidity: 5~95%, non condensing Operating altitude: 0 to 10,000 ft 0 to 40,000 ft Dimensions * Chassis: 362.3(H) x 128(W) x 327.6(L) mm default tower * Package: 450H x 500W x 600D mm System Weight * Net weight: 22.5kg * Gross weight: 21kg Rental: You may also rent this article for a limited time. Please request an offer. This possibility exists only for companies with good credit ratings. Spare Parts: As certified matchpart GmbH (Germany) Distributor we provide spare Parts. Delivery Service: At additional cost our Partner Systembau Dortmund GmbH & Co. KG packs and delivers this item if possible at the same day. Repair: Our Partner matchpart GmbH (Germany) offers circuit board repair service. If you are interested for a product you already own, we need serial number, YOM, sparepartnumber and type of error. Service Training: A Service Technician Training is available on request by matchpart GmbH (Germany). This training is neccessary if you want to install certified matchpart parts in exchange with warranty. Recertification: Brakensiek Systemhaus GmbH & Co. KG is ISO 9001 certified for the service of recertification. Please contact us for a quote if you need a recertification. Trade In/We are looking for machines: We offer Trade In prices. If you have machines for sale, please offert them to us. You have to cover the transport costs. Manuals: The manual will be send as PDF and the original one will be shipped at additional cost. Information for buyers: This machine is sold. You find other machines on our website. Please use the search button on our website. Our offers are changing daily. Purchase and Dismantling: Our partner Systembau Dortmund GmbH & Co. KG can dismantle the goods and transport them to us. They are specialists in that and have own all risk insurrance. Please offer us your surplus equipment for purchase. We deliver Spareparts as Exchange Part: We need the old broken part back, bevore we can ship the new part. Remote Kit: If you buy a remote kit from us, we can help you diagnosing Errors. You can buy sets of 3 working hours in advance. Rental Equipment: During the repair you can get a discount on rental equipment. |
|||
|
|
||||
| Weight | --- | |||
| Dimensions (LxWxH) | --- | |||
|
|
||||
| Location | Germany | |||
| Region | NRW | |||
|
|
||||
|
|
||||
|
|
||||
