Buying:

EonStor A08U C2411 MassCube I


ID 1912
Categories Data Storage |

Short description EonStor A08U C2411 MassCube I
Price (in €) on request

Manufacturer Infortrend
Model ---
Year of manufacture 0000
Warranty until ---

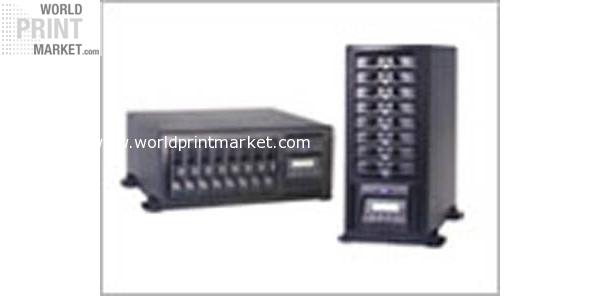

Long description EonStor A08U C2411 (MassCube I)

* SCSI 320 to SATA II single controller RAID subsystem
* Hardware XOR engine by dedicated ASIC chipsets
* Tower or desktop stackable enclosures
* Dual speed fans to reduce noise
* Enhanced modular enclosure design

Configuration Model Form Factor
Single A08U C2411 Cube tower or desktop convertible

Specifications

RAID
Multiple arrays configurable with dedicated or global hot spares
RAID levels supported: RAID 0, 1 (0+1), 3, 5, 10, 30, 50, NRAID and JBOD
Online expansion by:


* Adding new drives
* Copying and replacing drives with drives of larger capacity

Automatic background rebuilds
Configurable stripe size and write policy per array
Intelligent drive handling:


* In degraded mode: skips irreparable blocks to continue rebuild
* In normal operation: data block verification and repair

Host Interface


* One (1) SCSI 320 channel through two (2) VHDCI 68 pin SCSI ports; SCSI 160 backward compatible
* Concurrent I/O commands
* Tagged command queuing up to 256
* Variable stripe size per logical drive
* Optimization setting for random or sequential I/Os

Drive Interface


* Eight (8) 3Gbps SATA II, hot swappable drive trays that accommodate 1 inch pitch, 3.5 inch SATA I or SATA II disk drives
* Automatic bad sector reassignment
* Dedicated bandwidth to each connected drive

System Components
Single controller configuration provides full RAID functionalities


* One (1) tower/desktop convertible enclosure
* One (1) RAID controller module
* One (1) 128MB SDRAM DIMM module (pre installed on the controller module)
* One (1) 250W power supply unit
* Two (2), hot swappable, redundant, single fan cooling modules running in high/low speeds

Management
Front LCD control panel for setup and configuration
10/100 BaseT Ethernet for out of band management
One (1) RS 232C serial port for local access to firmware embedded utility


VT 100 terminal emulation via RS 232C
Telnet access via onboard Ethernet port
Java based RAIDWatch® GUI manager:


* Cross platform, remote administration with SSL
* Out of band access via Ethernet
* Centralized management to monitor and administer multiple RAID units on one screen

Configuration Client for real time event notification over Email, Fax, LAN broadcast, SNMP Traps, MSN messenger, ICQ, SMS short messages, and the configuration utility screen
SNMP agent support:


* SNMP trap event notification with plain text event message (no MIB file required)
* SNMP V2.0 MIB file support with get and set commands

Indicators
Onboard alarm is triggered when one of the following modules fails:


* RAID controller module
* Cooling module
* Power supply unit
* Hard drive
* Violated temperature thresholds

Module status LED indicators:


* Two (2) per drive tray
* One (1) per cooling module
* One (1) per power supply unit
* Three (3) per LCD panel
* Four (4) per RAID controller module
* Two (2) per Ethernet port

Module failure alert through I2C bus
Intelligent Drive Handling
If two bad blocks occur on two member drives of an array, the integrity of the stored data is endangered. Media Scan, Infortrend’s innovative intelligent drive handling function, retrieves data from the damaged sectors. Media Scan handles low quality drives in both the degraded mode and during the rebuild process. For additional data security, other intelligent drive management features include the transparent resetting of hung hard drives, power failure management, and bad drive handling during LD expansion.
Task Scheduler
The Task Scheduler is combined with Media Scan so that the scanning operation can be scheduled beginning at a specified start time and repeating at the configurable intervals. The operation is thus hands free. Each such schedule can be defined to operate on individual hard drives, all drives of a certain class, all member drives of a specified logical drive, or all member drives of all logical drives.
Interfaces


* Two VHDCI (2) ports in one (1) dual stacked VHDCI SCSI connector
* One (1) COM port (38400, n, 8, 1)
* One (1) 10/100BaseT Ethernet port

Power Supply Module
One (1) power supply with PFC

Input: 90VAC at 8A, 260VAC at 4A with PFC (auto switching)
47 ~ 63Hz

Output: (Maximum output: 250 Watts)
+12.0V 16A max.
+ 5.0V 20A max.
+ 3.3V 20A max.

Dimensions: 248.9D x 128.8W x 81.6H mm

Cooling Module
Two (2) redundant single fan cooling modules

Maximum air flow (each module): High speed: 53 CFM
Low speed: 23 CFM

Environmental Specifications

Operating temperature: 0 to 40°C
Non operating temperature: 40º to 60ºC
Relative humidity: 5~95%, non condensing
Operating altitude: 0 to 10,000 ft
0 to 40,000 ft

Dimensions


* Chassis without handles: 362.3(H) x 128(W) x 327.6(L) mm – default tower
* Package: 450H x 500W x 600D mm

System Weight


* Net weight: 18kg
* Gross weight: 19.5kg

Weight ---
Dimensions (LxWxH) ---

Location Germany
Region NRW
