Average length 720 mm
Altitude 80/781 MM
Throat depth 720 mm
Narrow cut 20/901 MM
Mains connection 400 V/50 Hz / 3 ~
Engine power
(Continuous recording)
Blade drive 1.5 KW
Saddle drive 0.1 KW
Press Print MIN. 250 daN
MAX. 2000 daN
Dimensions (H x W x D) 1335 X 1305 / 2100 1500 / 1600 2 X 2 MM
Weight 620 KG

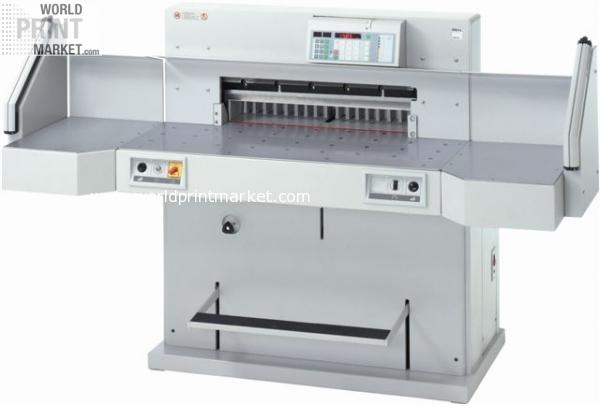

MACHINE EQUIPMENT
· Electro mechanical blade drive
· Hydraulic clamp drive
· Infinitely adjustable clamping pressure (250 2000 daN) with optical indicator LEDs
· Plug in clamp plate with optical indicator
· Electro mechanical back gauge with precision spindle drive (speed 53 mm / s)
• Series standard with air table (air nozzles on the front and rear tables)
· Foot pedal for pre clamping or mechanical cutting
· Optical cutting line indicator with light emitting diodes (LEDs)
· Stainless steel table tops at the front desk and side tables
· High quality HSS blades made of "Solingen steel"
• Material swing cut
· Solid steel blade carrier guided on both sides, adjustable
· Blade depth adjustment
· Additional tables (left and right) available as a stainless steel table top accessories
SAFETY EQUIPMENT
• Series by them in the work area with light barrier
· Transparent safety cover on the rear table
· Patented IDEAL safety drive
• Two handed operation with and repetitive
° Auto. Knife and clamp return from every position
• Main switch and safety lock with key
· Blade changing device with covered cutting edge
× 24 volt control
· Stacker angle for aligning stacks of paper
· "GS" test procedure, the accident prevention regulations and safety requirements of the professional association with the European "CE" standards
BACK CONTROL MODULE
× 40 programs with 36 steps
· Kettenmaßprogrammierung of up to 9 repeat measurements as a program step
· Automatic program sequence with section on monitoring program and memory mode
· Direct measurement input on numeric keypad
• 3 memory keys for cut sizes (selectable)
· Digital display with 1 / 10 mm accuracy
· "Set" function key for reference
· Electronic hand wheel for manual back gauge with fine adjustment variable speed control
· Pressure switch for quick adjustment of saddle (forward and reverse)
• Automatic Allowance for back stop shift
· Memory key for repeat cuts (by touch), plus automatic memory
· Paper output function "EJECT", with and without program mode
· Delete (DELETE) and insert ("INSERT") program of possible steps
· Integrated computer (four basic operations)
· Self diagnosis system with error indication on display
· Reversible mm / inches (in.)
