Buying: |

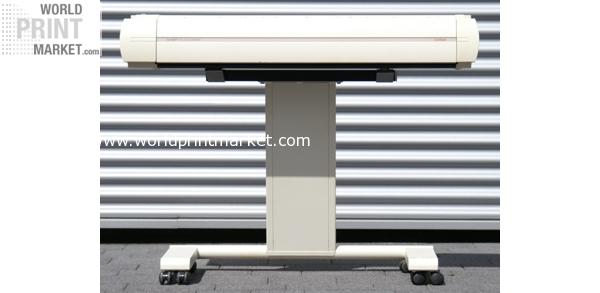

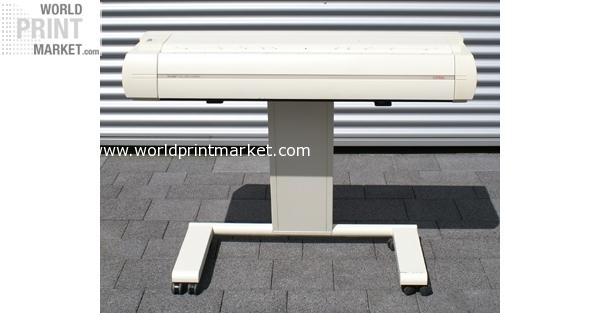

Contex FSS 8300 DSP Full Scale Scanner |
|||
|
||||
|
||||
ID | 2588 | |||
Categories | High-End-Scanner | | |||
|
||||
Short description | Contex FSS 8300 DSP Full Scale Scanner | |||
Price (in €) | on request | |||
|
||||
Manufacturer | Contex | |||
Model | --- | |||
Year of manufacture | 0000 | |||
Warranty until | --- | |||
|
||||
Long description | Contex FSS 8300 DSP Full Scale Scanner (not new, used) Interface: SCSI The Contex FSS 8300 DSP Full Scale Monochrome scanner is a cost efficient and high performance solution for the quick scanning of large amounts of drafts. This compact machine allows the capturing and administration of scanned documents. Sketches of dimensions up to 1016 mm (~40 inches) and standard Din A0 formats are automatically sampled at a rate of 914 mm (~36 inches). With the Contex FSS 8300 DSP you can digitalize documents on various media and convert them to CAD files, archive them or integrate them into highly developed GIS applications. Technical Data: Sensors: 2 x CCD Resolutions (dpi): 800, 600, 500, 400, 300, 200, 150, 75, 50, 25 Draft width: 153 mm – 1016 mm (~6 inches – 40 inches) Scan width: 914 mm (~36 inches) Scan length: not limited by scanner Scan speed: at 400dpi turbo, 24 Bit RGB 3â€/sec (7,6cm /sec) (~3 inches /sec) Scan Modes: 256 Greyscale (8 Bit) Black White (1 Bit) Copy Modes: Black White and Greyscale Digital imaging hardware 2D adjustable contrast tuning: Color Feature Extraction Digital imaging software greyscale contrast/density filter greyscale sharpness filter and blur tool Dual 2D adjustable copying extension ADL + Error Diffusion rasterize algorithms Light source: fluorescent lamp with constant power output Optic fixed beam of light, shockresistant, i.e. the machine is impervious to commotions. Dimensions (WxHxD): 1250 mm x 200 mm x 380 mm (~ 49 inches x 7,9 inches x 15 inches) Weight: 45 kg (~ 99,2 pounds) Power supply 130 W (110/220/240 V) / 50 Hz |
|||
|
||||
Weight | --- | |||
Dimensions (LxWxH) | --- | |||
|
||||
Location | Germany | |||
Region | NRW | |||
|
||||
|
||||
