Buying: |
Overland LoaderXpress LXL8110 DLT8000 |
|||
|
|
||||
|
|
||||
| ID | 2639 | |||
| Categories | Data Storage | | |||
|
|
||||
| Short description | Overland LoaderXpress LXL8110 DLT8000 | |||
| Price (in €) | on request | |||
|
|
||||
| Manufacturer | Overland | |||
| Model | --- | |||
| Year of manufacture | 0000 | |||
| Warranty until | 24.08.2006 | |||
|
|
||||

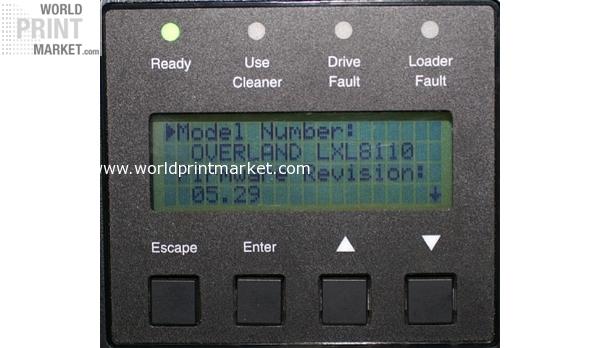

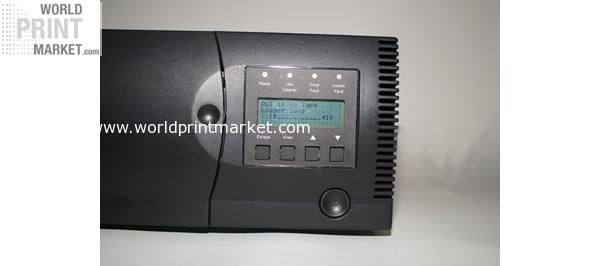

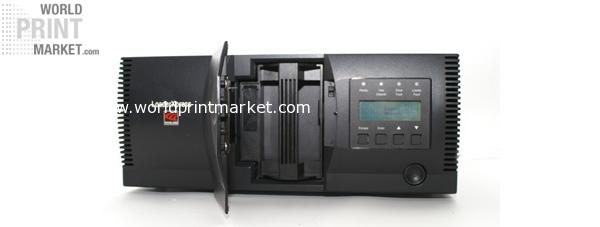

| Long description | Overland LoaderXpress LXL8110 DLT8000 Nicht Neu MODEL : DLT LXL LVD P/N REV : 103453 003 Serial No : 2U01905330 Firmware Revision: 5.29 Features: Drives: 1 DLT8000 Tape Carrtridges: 10 Tape Capacity: 40 GB Full Magazine with 2:1 Compression: 800 GB Data Transfer Rate: 21.6 GB (6 MB/second) Buffer : 8 MB Physical Configuration The LoaderXpress is a compact desktop unit with all operating controls on the front panel and power and SCSI connectors on the rear. Control Panel The control panel features a display screen, LED indicators, and four buttons. The buttons allow you to select and display operating modes, device status, diagnostic and maintenance functions, device history and error statistics, and system configuration. Display Screen Use the display screen to easily see drive and loader status, menu choices and error messages. You can also scroll up and down to access additional information. Power Supply The AC Power switch is located on the front panel of the module. The autoranging power supply adjusts automatically to either of two operating voltages (115 VAC and 240 VAC). The power supply operates at 50 or 60 Hz without requiring any modification. Robotics You can access the tape cartridge magazine through the door at the center of the front panel. The door includes an electronically controlled lock that protects the magazine from tampering or accidental removal. Integral Fan Cooling A single forced air fan is mounted on the rear panel to provide optimum cooling for critical parts, and to prevent the drive and robotics electronics, motors and power supply from overheating. Advanced Design Features The LoaderXpress incorporates many significant improvements in tape drive and library design. One of the most important is the use of reliable, highperformance DLT technology, featuring high capacity and long media life. Embedded Diagnostics The LoaderXpress provides three levels of embedded diagnostics: • Power On Self Test (POST) performs verification and memory tests on the processor’s host interface and device control functions at power up. • User Diagnostics help you change configuration options and control cartridge movements manually to help diagnose faults. • CE Diagnostics are used by Customer Engineers for servicing the LoaderXpress. Error Checking The DLT drive in the LoaderXpress applies a 16 bit parity check to each record, a 64 bit CRC to each 4kB of data, and Reed Solomon error correction code overall. In addition, there is an internal parity check on the data buffer. Media Life The media used in the DLT LoaderXpress is rated by the media manufacturer at over 1,000,000 head passes, and a shelf life of at least 30 years. |
|||
|
|
||||
| Weight | --- | |||
| Dimensions (LxWxH) | --- | |||
|
|
||||
| Location | Germany | |||
| Region | NRW | |||
|
|
||||
|
|
||||
|
|
||||
| View this article on the vendor's web site. | ||||
