Selling:

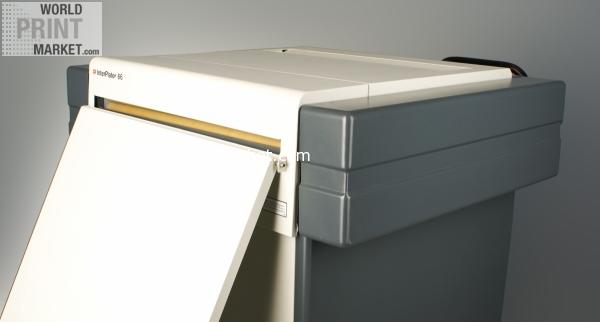

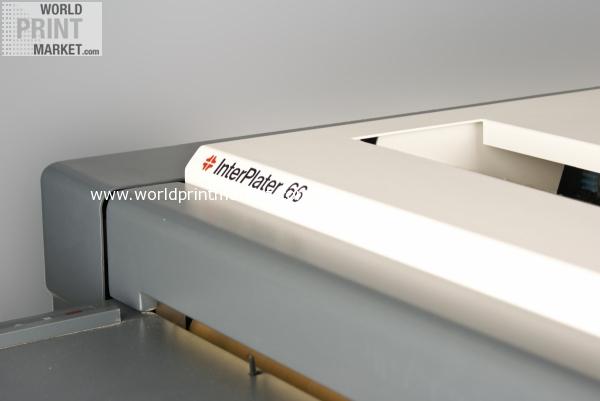

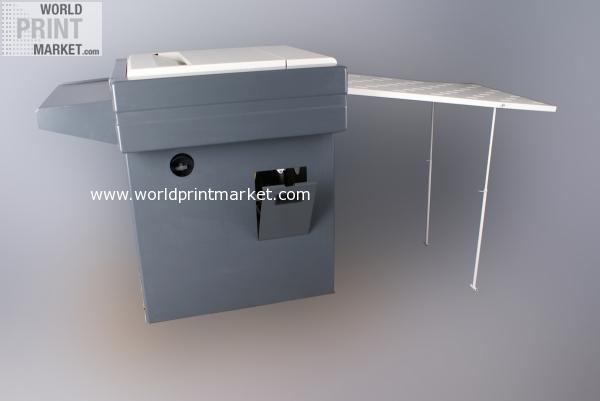

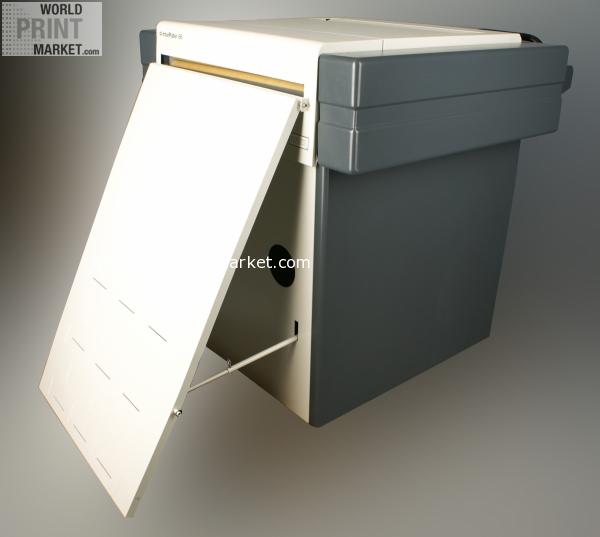

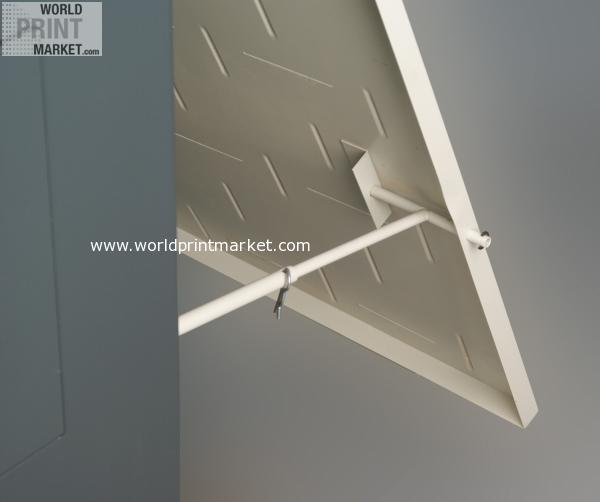

Glunz & Jensen InterPlater 66 P plate processor Yom 2006


ID 2825
Categories Developing Machines |

Short description Glunz & Jensen InterPlater 66 P plate processor Yom 2006
Price (in €) on request

Manufacturer Glunz & Jensen
Model ---
Year of manufacture 0000
Warranty until ---

Long description Glunz & Jensen InterPlater 66 P plate processor

Category: CTP Platesetters > Plateprocessors and Punches
Manufacturer: Glunz & Jensen

Not New

Year 2006

Information:

The processor 66 can Interplater positive (P version) and negative (N version) one sided offset plates in widths up to develop 660 mm.
By using the standards of the "Soft Nylon Brush" technology that can edit Interplater 66 each available on the market records.

The machine can be built and installed in an hour.
The height and length of the output can be adjusted easily to his needs by the operator.

Key features:

High quality
The unique feed system transports the film precisely in the developer
No scratches possible
Proven technology
Possible without mixing the liquids during the development of the film

Flexible
Works with all standard film types that are available on the market
Develop positive and negative one sided offset plates

Efficient
The closed immersion reduce the consumption of chemicals due to the reduced evaporation
Anti evaporation lid
Precise replenishment system which is constantly adjusted by system data

Ease of use
Auto Replenishing System
Easy operation by control panel
Easy to adjust parameters

Maintenance
Automatic self Gummierungseinheit
Lightweight and easy to clean rack modules
No tool for the rollers, brushes and bearings needed to remove
Design easy to maintain


Technical data:

InterPlater 66/88
Positive and negative plate materials single sided offset plates
Processing speed 40 140 cm / min. (16 55 "/ min.)
Material width, min 10 cm (4 ")
Material width, max 66 / 88 cm (26 "/ 34.6")
Material length, min 330 mm (13.0 ")
Material thickness 0.15 mm (0.006 ") 0.4 mm (0.016")
Tank contents, developer 18 liters (4.75 gal U.S. gal) / 24 l (6.34 U.S.)
Tank contents, gum Recirculating from container
Adjustable temperature, developer 18 40 ° C (64.4 104 ° F) A cooling unit is recommended under certain conditions.
Adjustable temperature, dryer 30 60 ° C (86 140 ° F)
Brush speed 40 140 rpm
Filter 1 x 10 "
Water supply tap water, pressure min. 1 bar/15 psi
Water consumption in Op max. 7.0 l / min. (1.85 U.S. gal / min)
Wash Tap water
Diameter of rollers 40 mm (1.6 ")
Automatic Replenishment
Area replenishment amount 000 500 ml/m2 ± 5% (0 0132 gal/m2 ± 5%)
Level Control Yes
Warm up time max., Developer min 0.3 ° C /. (Min 0.86 ° F /.
Power 230 V, 1 phase, 50/60 Hz
Power consumption, max 2.2 kW
At 230 V Voltage tolerance: + 10% 15% (208 240 V)
Start sensor operated
Weight, empty 125 / 150 kg (276/331 lb)
Approvals UL, c UL, and GOST R certified. Complies with CE standards.

Weight ---
Dimensions (LxWxH) ---

Location Germany
Region NRW


View this article on the vendor's web site.
