Buying:

Heidelberg Primesetter 102


ID 2828
Categories CTF-Systems |

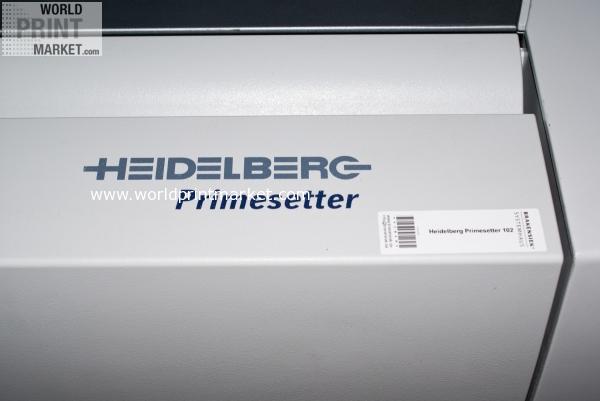

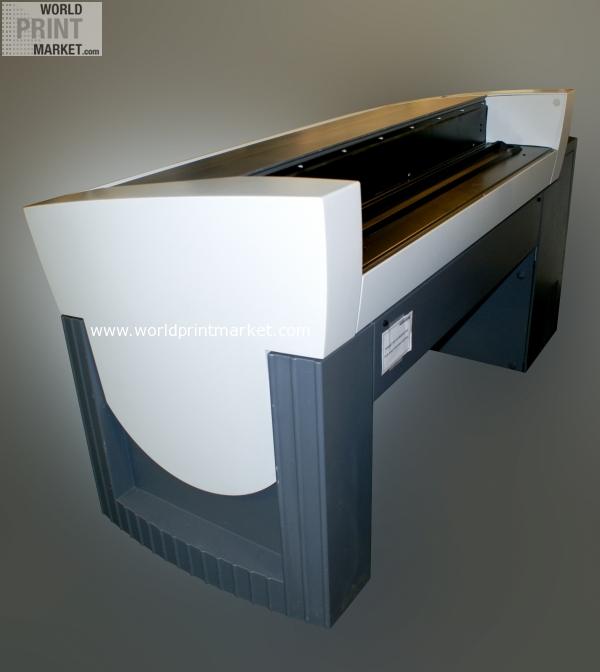

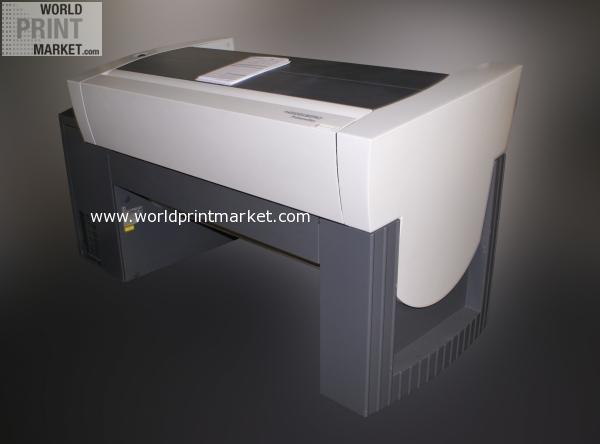

Short description Heidelberg Primesetter 102
Price (in €) on request

Manufacturer Wick
Model ---
Year of manufacture 2003
Warranty until ---

Long description Heidelberg Primesetter 102

Not New



Heidelberg Primesetter 102

Tecnical data:
Imaging principle
Indrum principal, laser beam deflected by a rotating, air cushioned prism

Light source
Laser diode emitting at 658 nm ± 10 laser class 1

Scan line length
770 mm (internal drum circumference)

Resolution
Metric and inch resolution

Spot sizes
Matched to the selected resolution of the Primesetter,
minimum 12 μm,
maximum 20 μm

Maximum grid frequency
film exposure at up to 120 lines / cm (305 lpi)
for polyester printing plates up to 70 lines / cm (187 lpi)

Repeat accuracy
±5 μm over full format and eight films (color set) imaged in direct succession
and ignoring distortion of photographic material caused by changes in temperature and humidity

Output options
Positive, negative, right and wrong and Duplo double Duplo and Quadro

Maximumimaging format
770 x 1070mm (30,3 x 42,1 inch)

Material widths:
Film 13 steps, 460 – 1080 mm (18,1 – 42,1 inch)
Polyester plates 0.2 mm: 15 stages, 450 – 1050mm
Polyester plates 0.3 mm: 12 stages, 650 1050mm

Minimum material width and length
450 x 400mm (17,7 x 15,75 inch)

Dimensions (W x H x D)
2050 x 1110 x 884mm
(80,7 x 43,7 x 34,8 inch)

Weight
Approx. 620 kg

RIP platforms
Delta Technology (6.1 version)
Prinergy (Version 2.0)

Photographic materials in roll
Film, polyester plates 0.1 0.3 mm thick; sensitivity to light emission at 650 670 nm

Photo material specification
Core diameter 72mm with special side flanges; emulsion outside; special packaging
for inserting into the supply cassette during daylight operation

Capacity of supply cassette
Max. 75 m of 0.10 mm thick photographic material, dependent on material

Metric resolution and recorder speed
Resolution Max.speed
Pixel/cm Dots/inchcm/min inch/min
500127072,028,4
666169254,021,3
800203245,017,7
1000254036,014,2
1333338627,010,6

Imperial (inch) resolution and recorder speed
Resolution max.speed
Pixel/cm Dots/inch cm/min inch/min
472 1200 76,2 30,0
630 1600 57,1 22,5
945 2400 38,1 15,0
1260 3200 28,6 11,2

Interfaces
SpeedWay ® Interface

Main voltage
115 or 230 V AC

Power
0.7 kW at 115 V and 230

Ambient temperature
+18 ° C to +28 ° C

Humidity
45 80%, non condensing

Weight 620
Dimensions (LxWxH) 88,4 x 205 x 111

Location Germany
Region NRW
